Beam alteration for downstem secondary beams. More...

#include <Details.h>

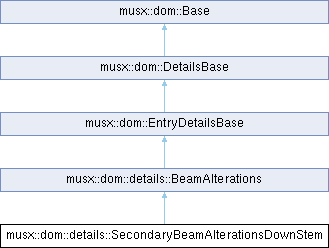

Inheritance diagram for musx::dom::details::SecondaryBeamAlterationsDownStem:

Public Member Functions
	SecondaryBeamAlterationsDownStem (const DocumentWeakPtr &document, Cmper partId, ShareMode shareMode, EntryNumber entnum, Inci inci)
	Constructor.

Public Member Functions inherited from musx::dom::details::BeamAlterations
	BeamAlterations (const DocumentWeakPtr &document, Cmper partId, ShareMode shareMode, EntryNumber entnum, std::optional< Inci > inci=std::nullopt)
	Constructor.

Efix	calcEffectiveBeamWidth () const
	Calculates the effective beam width by returning either the default width or the width override value specified by beamWidth.

bool	isActive () const
	Returns whether this beam alteration record is active. Its flattenStyle must match the value in options::BeamOptions.

Public Member Functions inherited from musx::dom::EntryDetailsBase
EntryNumber	getEntryNumber () const
	Gets the `entnum` key value.

Public Member Functions inherited from musx::dom::DetailsBase
	DetailsBase (const DetailsBase &)=default
	explicit default copy constructor

	DetailsBase (DetailsBase &&) noexcept=default
	explicit default move constructor

Cmper	getCmper1 () const
	Gets the `cmper1` key value.

Cmper	getCmper2 () const
	Gets the `cmper2` key value.

std::optional< Inci >	getInci () const
	Gets the optional array index (`inci`).

Cmper	getRequestedPartId () const
	If this instance was retrieved from an object pool, it contains the part ID that was used to retrieve it. If this value is different than getSourcePartId, then this instance is a copy of the pool instance.

Public Member Functions inherited from musx::dom::Base
virtual	~Base () noexcept(false)=default
	Virtual destructor for polymorphic behavior.

DocumentPtr	getDocument () const
	Gets a reference to the Document.

Cmper	getSourcePartId () const
	Gets the source partId for this instance. If an instance is fully shared with the score, the source is SCORE_PARTID. If an instance is partially shared or non shared, the source is the ID of the part that sourced it.

ShareMode	getShareMode () const
	Gets the sharing mode for this instance.

const SharedNodes &	getUnlinkedNodes () const
	Gets the unlinked nodes for this instance. (Only populated for `ShareMode::Partial`)

void	addUnlinkedNode (const std::string &nodeName)
	Adds a shared node for this instance.

virtual void	integrityCheck (const std::shared_ptr< Base > &ptrToThis)
	Allows a class to determine if it has been properly contructed by the factory and fix issues that it can, such as creating default instances of contained classes.

virtual bool	requireAllFields () const
	Specifies if the parser should alert (print or throw) when an unknown xml tag is found for this class.

Static Public Member Functions
static bool	calcIsFeatheredBeam (const EntryInfoPtr &entryInfo, Evpu &outLeftY, Evpu &outRightY)
	Calculates if the input entry starts a feathered beam and returns information about it.

Static Public Member Functions inherited from musx::dom::details::BeamAlterations
template<typename T , std::enable_if_t< std::is_base_of_v< BeamAlterations, T >, int > = 0>
static void	calcAllActiveFlags (const DocumentPtr &document)
	Used by the factory to set active indicators.

static const xml::XmlElementArray< BeamAlterations > &	xmlMappingArray ()
	Required for musx::factory::FieldPopulator.

Static Public Attributes
static constexpr std::string_view	XmlNodeName = "beamAltSecDownStem"
	The XML node name for this type.

Additional Inherited Members
Public Types inherited from musx::dom::details::BeamAlterations
using	FlattenStyle = options::BeamOptions::FlattenStyle
	see options::BeamOptions::FlattenStyle

Public Types inherited from musx::dom::Base
enum class	ShareMode { All , Partial , None }
	Describes how this instance is shared between part and score. More...

using	SharedNodes = std::set< std::string >
	The container type for shared nodes.

Public Attributes inherited from musx::dom::details::BeamAlterations
Evpu	leftOffsetH {}
	Horizontal adjustment of the beam start. (xml node is `<xAdd>`)

Evpu	leftOffsetY {}
	Vertical adjustment of the beam start. (xml node is `<yAdd>`)

Evpu	rightOffsetH {}
	Horizontal adjustment of the beam end. (xml node is `<sxAdd>`)

Evpu	rightOffsetY {}
	Vertical adjustment of the beam end. (xml node is `<syAdd>`)

Edu	dura {}
	For secondary beams, specifies the duration corresponding to the secondary beam (16th beam is 256, 32nd beam is 128, etc.)

FlattenStyle	flattenStyle {}
	Beam shaping style (xml node is `<context>`).

Efix	beamWidth {}
	The calcEffectiveBeamWidth method handles this for you.

Protected Member Functions inherited from musx::dom::EntryDetailsBase
	EntryDetailsBase (const DocumentWeakPtr &document, Cmper partId, ShareMode shareMode, EntryNumber entnum, std::optional< Inci > inci=std::nullopt)
	Constructs a EntryDetailsBase object.

Protected Member Functions inherited from musx::dom::DetailsBase
	DetailsBase (const DocumentWeakPtr &document, Cmper partId, ShareMode shareMode, Cmper cmper1, Cmper cmper2, std::optional< Inci > inci=std::nullopt)
	Constructs a DetailsBase object.

DetailsBase &	operator= (const DetailsBase &other)
	Assignment operator delegates to base, preserving OthersBase state.

DetailsBase &	operator= (DetailsBase &&other) noexcept
	Assignment operator delegates to base, preserving OthersBase state.

Protected Member Functions inherited from musx::dom::Base
	Base (const DocumentWeakPtr &document, Cmper partId, ShareMode shareMode)
	Constructs the base class.

	Base (const Base &)=default
	explicit default copy constructor

	Base (Base &&) noexcept=default
	explicit default move constructor

Base &	operator= (const Base &)
	no-op copy assignment operator allows subclasses to copy their values.

Base &	operator= (Base &&) noexcept
	no-op move assignment operator allows subclasses to move their values.

Static Protected Member Functions inherited from musx::dom::details::BeamAlterations
template<typename SecondaryBeamType >
static bool	calcIsFeatheredBeamImpl (const EntryInfoPtr &entryInfo, Evpu &outLeftY, Evpu &outRightY)
	Implementation of SecondaryBeamAlterationsDownStem::calcIsFeatheredBeam and SecondaryBeamAlterationsUpStem::calcIsFeatheredBeam.

Detailed Description

Beam alteration for downstem secondary beams.

Entry::stemDetail is set if the entry has any beam extensions.

Constructor & Destructor Documentation

◆ SecondaryBeamAlterationsDownStem()

musx::dom::details::SecondaryBeamAlterationsDownStem::SecondaryBeamAlterationsDownStem	(	const DocumentWeakPtr &	document,
		Cmper	partId,
		ShareMode	shareMode,
		EntryNumber	entnum,
		Inci	inci
	)

inlineexplicit

Constructor.

Parameters

document	A weak pointer to the associated document.
partId	The part this is for.
shareMode	The sharing mode.
entnum	The entry number this applies to.
inci	The incident, since each secondary beam has a record. They are in no guaranteed order. Use the BeamAlterations::dura value to determine which beam this pertains to.

Member Function Documentation

◆ calcIsFeatheredBeam()

static bool musx::dom::details::SecondaryBeamAlterationsDownStem::calcIsFeatheredBeam	(	const EntryInfoPtr &	entryInfo,
		Evpu &	outLeftY,
		Evpu &	outRightY
	)

inlinestatic

Calculates if the input entry starts a feathered beam and returns information about it.

Note: Instead of calling this function directly, consider using EntryInfoPtr::calcIsFeatheredBeamStart instead.

Parameters

[in]	entryInfo	The entry info to search.
[out]	outLeftY	The height of the left side of the feathered beam
[out]	outRightY	The height of the right side of the feathered beam

Returns: true if this is a feathered beam. If the return value is false, outLeftY and outRightY are unchanged.
