Represents beam alterations applied to a specific entry. This is used to apply additional shaping or offset values both primary and secondary beams. Which stem direction this instance controls is determined by the subclass that inherits this class as a base. More...

#include <Details.h>

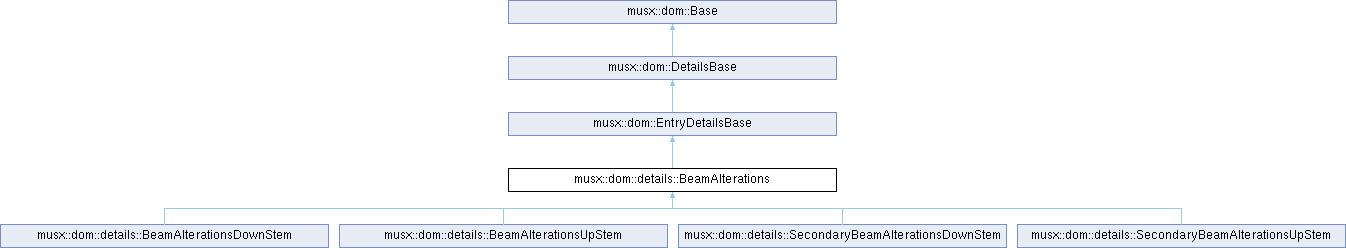

Inheritance diagram for musx::dom::details::BeamAlterations:

Public Types
using	FlattenStyle = options::BeamOptions::FlattenStyle
	see options::BeamOptions::FlattenStyle

Public Types inherited from musx::dom::EntryDetailsBase
enum class	StemSelection { MatchEntry , UpStem , DownStem , Any }
	The options for choosing which version to retrieve for stem-specific details. More...

Public Types inherited from musx::dom::Base
enum class	ShareMode { All , Partial , None }
	Describes how this instance is shared between part and score. More...

using	SharedNodes = std::set< std::string >
	The container type for shared nodes.

Public Member Functions
	BeamAlterations (const DocumentWeakPtr &document, Cmper partId, ShareMode shareMode, EntryNumber entnum, std::optional< Inci > inci=std::nullopt)
	Constructor.

Efix	calcEffectiveBeamWidth () const
	Calculates the effective beam width by returning either the default width or the width override value specified by beamWidth.

bool	isActive () const
	Returns whether this beam alteration record is active. Its flattenStyle must match the value in options::BeamOptions.

Public Member Functions inherited from musx::dom::EntryDetailsBase
EntryNumber	getEntryNumber () const
	Gets the `entnum` key value.

Public Member Functions inherited from musx::dom::DetailsBase
	DetailsBase (const DetailsBase &)=default
	explicit default copy constructor

	DetailsBase (DetailsBase &&) noexcept=default
	explicit default move constructor

Cmper	getCmper1 () const
	Gets the `cmper1` key value.

Cmper	getCmper2 () const
	Gets the `cmper2` key value.

std::optional< Inci >	getInci () const
	Gets the optional array index (`inci`).

Cmper	getRequestedPartId () const
	If this instance was retrieved from an object pool, it contains the part ID that was used to retrieve it. If this value is different than getSourcePartId, then this instance is a copy of the pool instance.

Public Member Functions inherited from musx::dom::Base
virtual	~Base () noexcept(false)=default
	Virtual destructor for polymorphic behavior.

DocumentPtr	getDocument () const
	Gets a reference to the Document.

Cmper	getSourcePartId () const
	Gets the source partId for this instance. If an instance is fully shared with the score, the source is SCORE_PARTID. If an instance is partially shared or non shared, the source is the ID of the part that sourced it.

ShareMode	getShareMode () const
	Gets the sharing mode for this instance.

const SharedNodes &	getUnlinkedNodes () const
	Gets the unlinked nodes for this instance. (Only populated for `ShareMode::Partial`)

void	addUnlinkedNode (const std::string &nodeName)
	Adds a shared node for this instance.

virtual void	integrityCheck (const std::shared_ptr< Base > &ptrToThis)
	Allows a class to determine if it has been properly contructed by the factory and fix issues that it can, such as creating default instances of contained classes.

virtual bool	requireAllFields () const
	Specifies if the parser should alert (print or throw) when an unknown xml tag is found for this class.

Static Public Member Functions
template<typename T , std::enable_if_t< std::is_base_of_v< BeamAlterations, T >, int > = 0>
static void	calcAllActiveFlags (const DocumentPtr &document)
	Used by the factory to set active indicators.

static MusxInstance< BeamAlterations >	getPrimaryForStem (const EntryInfoPtr &entryInfo, StemSelection stemSelection=StemSelection::MatchEntry)
	Gets the beam extension record for the specified `stemSelection`.

static MusxInstance< BeamAlterations >	getSecondaryForStem (const EntryInfoPtr &entryInfo, Edu dura, StemSelection stemSelection=StemSelection::MatchEntry)
	Gets the beam extension record for the specified `stemSelection`.

static const xml::XmlElementArray< BeamAlterations > &	xmlMappingArray ()
	Required for musx::factory::FieldPopulator.

Public Attributes
Evpu	leftOffsetH {}
	Horizontal adjustment of the beam start. (xml node is `<xAdd>`)

Evpu	leftOffsetY {}
	Vertical adjustment of the beam start. (xml node is `<yAdd>`)

Evpu	rightOffsetH {}
	Horizontal adjustment of the beam end. (xml node is `<sxAdd>`)

Evpu	rightOffsetY {}
	Vertical adjustment of the beam end. (xml node is `<syAdd>`)

Edu	dura {}
	For secondary beams, specifies the duration corresponding to the secondary beam (16th beam is 256, 32nd beam is 128, etc.)

FlattenStyle	flattenStyle {}
	Beam shaping style (xml node is `<context>`).

Efix	beamWidth {}
	The calcEffectiveBeamWidth method handles this for you.

Static Protected Member Functions
template<typename SecondaryBeamType >
static bool	calcIsFeatheredBeamImpl (const EntryInfoPtr &entryInfo, Evpu &outLeftY, Evpu &outRightY)
	Implementation of SecondaryBeamAlterationsDownStem::calcIsFeatheredBeam and SecondaryBeamAlterationsUpStem::calcIsFeatheredBeam.

template<typename SecondaryBeamType >
static MusxInstanceList< SecondaryBeamType >	getSecondaryBeamArray (const EntryInfoPtr &entryInfo)
	Generalized getter for secondary beam type arrays for either stem direction.

Static Protected Member Functions inherited from musx::dom::EntryDetailsBase
template<typename EDUP , typename EDDOWN , typename EDBASE >
static MusxInstance< EDBASE >	getStemDependentDetail (const EntryInfoPtr &entryInfo, StemSelection stemSelection)
	Implement retrieval of stem-specific details. (Actual functions are defined per stem-specific class)

Additional Inherited Members
Protected Member Functions inherited from musx::dom::EntryDetailsBase
	EntryDetailsBase (const DocumentWeakPtr &document, Cmper partId, ShareMode shareMode, EntryNumber entnum, std::optional< Inci > inci=std::nullopt)
	Constructs a EntryDetailsBase object.

Protected Member Functions inherited from musx::dom::DetailsBase
	DetailsBase (const DocumentWeakPtr &document, Cmper partId, ShareMode shareMode, Cmper cmper1, Cmper cmper2, std::optional< Inci > inci=std::nullopt)
	Constructs a DetailsBase object.

DetailsBase &	operator= (const DetailsBase &other)
	Assignment operator delegates to base, preserving OthersBase state.

DetailsBase &	operator= (DetailsBase &&other) noexcept
	Assignment operator delegates to base, preserving OthersBase state.

Protected Member Functions inherited from musx::dom::Base
	Base (const DocumentWeakPtr &document, Cmper partId, ShareMode shareMode)
	Constructs the base class.

	Base (const Base &)=default
	explicit default copy constructor

	Base (Base &&) noexcept=default
	explicit default move constructor

Base &	operator= (const Base &)
	no-op copy assignment operator allows subclasses to copy their values.

Base &	operator= (Base &&) noexcept
	no-op move assignment operator allows subclasses to move their values.

Detailed Description

Represents beam alterations applied to a specific entry. This is used to apply additional shaping or offset values both primary and secondary beams. Which stem direction this instance controls is determined by the subclass that inherits this class as a base.

Constructor & Destructor Documentation

◆ BeamAlterations()

musx::dom::details::BeamAlterations::BeamAlterations	(	const DocumentWeakPtr &	document,
		Cmper	partId,
		ShareMode	shareMode,
		EntryNumber	entnum,
		std::optional< Inci >	inci = `std::nullopt`
	)

inlineexplicit

Constructor.

Parameters

document	A weak pointer to the associated document.
partId	The part this is for.
shareMode	The sharing mode.
entnum	The entry number this applies to.
inci	The inci (if supplied)

Member Function Documentation

◆ calcEffectiveBeamWidth()

Efix musx::dom::details::BeamAlterations::calcEffectiveBeamWidth ( ) const

Calculates the effective beam width by returning either the default width or the width override value specified by beamWidth.

Note: The beamWidth of primary beams also controls the width of secondary beams.

Returns: The effective beam width of this beam, taking into account all conditions that prefer the default width to the value in beamWidth.

◆ getPrimaryForStem()

MusxInstance< BeamAlterations > musx::dom::details::BeamAlterations::getPrimaryForStem	(	const EntryInfoPtr &	entryInfo,
		StemSelection	stemSelection = `StemSelection::MatchEntry`
	)

static

Gets the beam extension record for the specified stemSelection.

Parameters

entryInfo	The entry to search.
stemSelection	The choice of which stem version to get.

◆ getSecondaryForStem()

MusxInstance< BeamAlterations > musx::dom::details::BeamAlterations::getSecondaryForStem	(	const EntryInfoPtr &	entryInfo,
		Edu	dura,
		StemSelection	stemSelection = `StemSelection::MatchEntry`
	)

static

Gets the beam extension record for the specified stemSelection.

Parameters

entryInfo	The entry to search.
dura	The duration corresponding to the secondary beam to retrieve. (16th beam is 256, 32nd beam is 128, etc.)
stemSelection	The choice of which stem version to get.

◆ isActive()

bool musx::dom::details::BeamAlterations::isActive ( ) const

inline

Returns whether this beam alteration record is active. Its flattenStyle must match the value in options::BeamOptions.

Returns: True if active, otherwise false.

Member Data Documentation

◆ beamWidth

Efix musx::dom::details::BeamAlterations::beamWidth {}

The calcEffectiveBeamWidth method handles this for you.

Beam width. A value of -1 indicates to use the default beam width from options::BeamOptions.
