musx::dom::details::ShapeNoteBase Class Reference

Shape Note settings for staves and staffs style. More...

#include <Details.h>

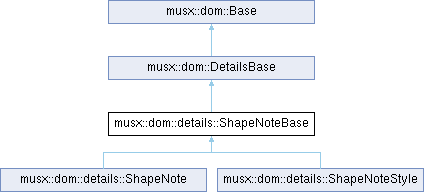

Inheritance diagram for musx::dom::details::ShapeNoteBase:

Classes
class	NoteShapes
	Embedded shape record for a single index in noteShapes. More...

Public Member Functions
	ShapeNoteBase (const DocumentWeakPtr &document, Cmper partId, ShareMode shareMode, Cmper cmper1, Cmper cmper2)
	Constructor function.
void	integrityCheck (const std::shared_ptr< Base > &ptrToThis) override
	Allows a class to determine if it has been properly contructed by the factory and fix issues that it can, such as creating default instances of contained classes.
Public Member Functions inherited from musx::dom::DetailsBase
	DetailsBase (const DetailsBase &)=default
	explicit default copy constructor
	DetailsBase (DetailsBase &&) noexcept=default
	explicit default move constructor
Cmper	getCmper1 () const
	Gets the cmper1 key value.
Cmper	getCmper2 () const
	Gets the cmper2 key value.
std::optional< Inci >	getInci () const
	Gets the optional array index (inci).
Cmper	getRequestedPartId () const
	If this instance was retrieved from an object pool, it contains the part ID that was used to retrieve it. If this value is different than getSourcePartId, then this instance is a copy of the pool instance.
Public Member Functions inherited from musx::dom::Base
virtual	~Base () noexcept(false)=default
	Virtual destructor for polymorphic behavior.
DocumentPtr	getDocument () const
	Gets a reference to the Document.
Cmper	getSourcePartId () const
	Gets the source partId for this instance. If an instance is fully shared with the score, the source is SCORE_PARTID. If an instance is partially shared or non shared, the source is the ID of the part that sourced it.
ShareMode	getShareMode () const
	Gets the sharing mode for this instance.
const SharedNodes &	getUnlinkedNodes () const
	Gets the unlinked nodes for this instance. (Only populated for ShareMode::Partial)
void	addUnlinkedNode (const std::string &nodeName)
	Adds a shared node for this instance.
virtual bool	requireAllFields () const
	Specifies if the parser should alert (print or throw) when an unknown xml tag is found for this class.

Static Public Member Functions
static const xml::XmlElementArray< ShapeNoteBase > &	xmlMappingArray ()
	Required for musx::factory::FieldPopulator.

Public Attributes
std::vector< std::shared_ptr< NoteShapes > >	noteShapes
	Notehead shapes (only the first seven elements are used).
bool	arrangedByPitch {}

Additional Inherited Members
Public Types inherited from musx::dom::Base
enum class	ShareMode { All , Partial , None }
	Describes how this instance is shared between part and score. More...
using	SharedNodes = std::set< std::string >
	The container type for shared nodes.
Protected Member Functions inherited from musx::dom::DetailsBase
	DetailsBase (const DocumentWeakPtr &document, Cmper partId, ShareMode shareMode, Cmper cmper1, Cmper cmper2, std::optional< Inci > inci=std::nullopt)
	Constructs a DetailsBase object.
DetailsBase &	operator= (const DetailsBase &other)
	Assignment operator delegates to base, preserving OthersBase state.
DetailsBase &	operator= (DetailsBase &&other) noexcept
	Assignment operator delegates to base, preserving OthersBase state.
Protected Member Functions inherited from musx::dom::Base
	Base (const DocumentWeakPtr &document, Cmper partId, ShareMode shareMode)
	Constructs the base class.
	Base (const Base &)=default
	explicit default copy constructor
	Base (Base &&) noexcept=default
	explicit default move constructor
Base &	operator= (const Base &)
	no-op copy assignment operator allows subclasses to copy their values.
Base &	operator= (Base &&) noexcept
	no-op move assignment operator allows subclasses to move their values.

Detailed Description

Shape Note settings for staves and staffs style.

See ShapeNote and ShapeNoteStyle for cmper1 and cmper2 values.

The glyph codes are from font options::FontOptions::FontType::Noteheads unless the notehead font is overridden by the applicable others::Staff or others::StaffStyle.

Member Function Documentation

integrityCheck()

void musx::dom::details::ShapeNoteBase::integrityCheck ( const std::shared_ptr< Base > &  ptrToThis )

inlineoverridevirtual

Allows a class to determine if it has been properly contructed by the factory and fix issues that it can, such as creating default instances of contained classes.

The default implementation should always be called inside an overridden implementation.

Parameters

ptrToThis

This instance in a shared_ptr. (Avoids need for shared_from_this.)

Exceptions

musx::dom::integrity_error

if there is a problem.

Reimplemented from musx::dom::Base.

Member Data Documentation

arrangedByPitch

bool musx::dom::details::ShapeNoteBase::arrangedByPitch {}

If true, the shapes correspond to pitches (C, D, E, F, G, A, B). If false, the shapes correspond to scale degrees 0..6 in the key signauture.
